Legion LPHS Horizontal Leg Press Hack Squat | Iron Clinic Review

Introduction

There’s a version of this review where I open with a list of every leg press hack squat I’ve tested to set up how this one surprised me. I’ll skip that. The short version is this: most machines in this category are variations on the same mechanical idea, and after enough of them you stop expecting anything new.

Then I came across the Legion Fitness Horizontal Leg Press Hack Squat while scrolling equipment listings late one night from the deck of the boat I live on, and I had to read the description twice to understand what I was looking at.

The machine is horizontal. The leg press is done seated, pressing straight out in front of you. The hack squat is done lying flat on your back. Both movements run through a belt driven cable system at a true 1:1 ratio. It ships on a pallet, weighs over 350 pounds, and takes up 36.25 inches of width, roughly a foot less than most machines in this category.

I reached out to Legion, they sent one out, and I’ve spent 90 days on it. Here’s what I found.

First Look

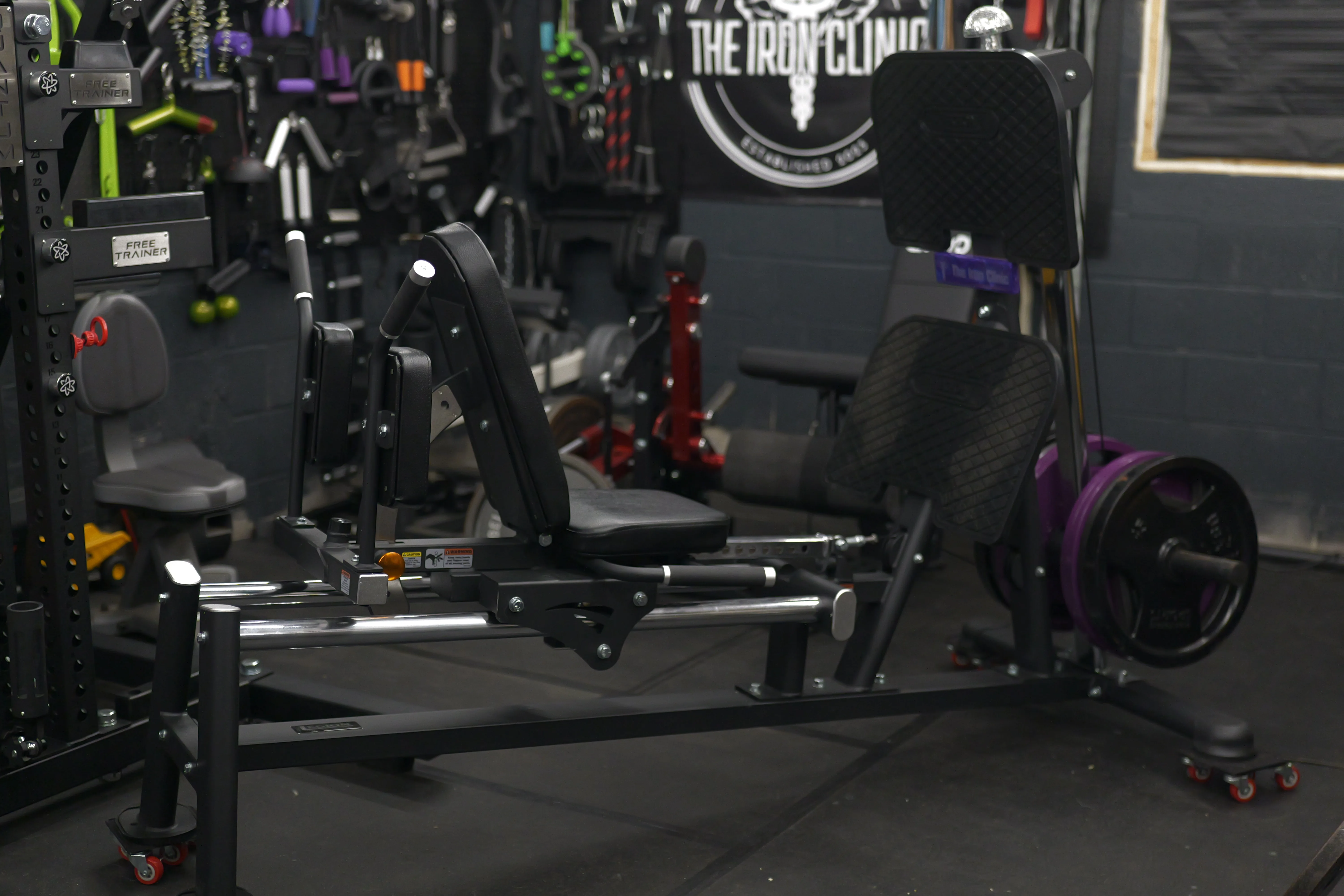

What comes out of the crate doesn’t look like any leg press you’ve seen before. There’s no reclined seat angled toward the ceiling. There’s no massive 45 degree footprint. The machine sits low and flat, and when you stand next to it for the first time your first instinct is to wonder if something is missing.

Nothing is missing. The concept is straightforward once you’re in front of it. For leg pressing, you sit in the seat and push straight out in front of you, legs extending parallel to the ground. No angle. No elevation. For hack squats, you pull a pop pin, fold the seat flat, lie on your back, put your feet on the footplates above you, and press up. The machine doesn’t reconfigure. The movement pattern does.

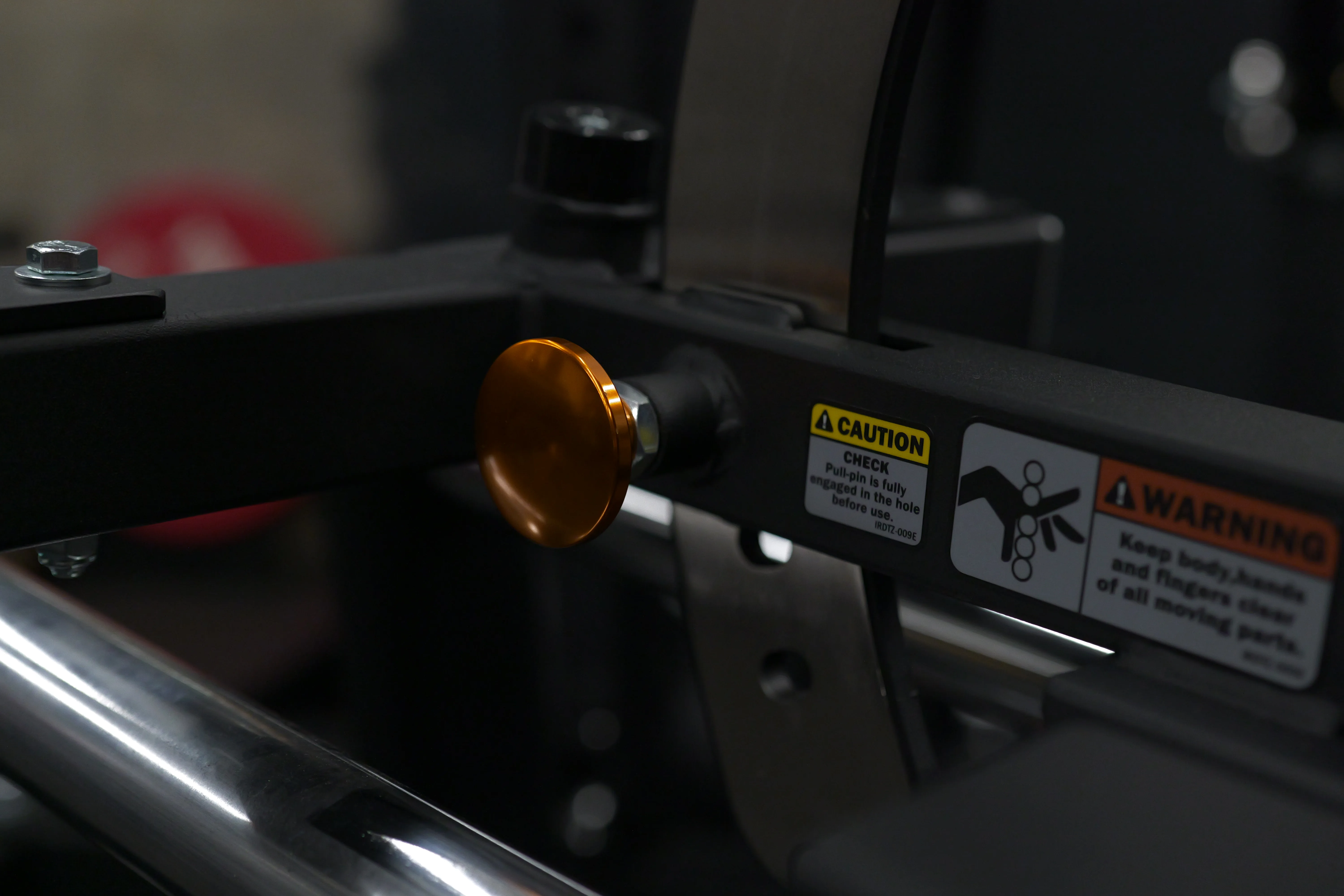

That shift between modes takes seconds. Pull the pin, fold the seat down, done. Fold it back up, lock the pin, choose your back pad angle from three positions, done. The design removes the usual hassle of moving pads and unlocking components that most combo machines require when switching between exercises.

The width is where the visual impact hits you hardest. At 36.25 inches across, it is roughly a foot narrower than a typical leg press hack squat combo, which runs around 48 inches wide. The length is comparable to most standard machines in the category, somewhere in the 84 to 90 inch range. The floor space savings come from the side, not the depth, and in a garage or spare room where equipment often ends up arranged wall to wall, that foot of lateral clearance can be the difference between a machine fitting and not.

Build Quality

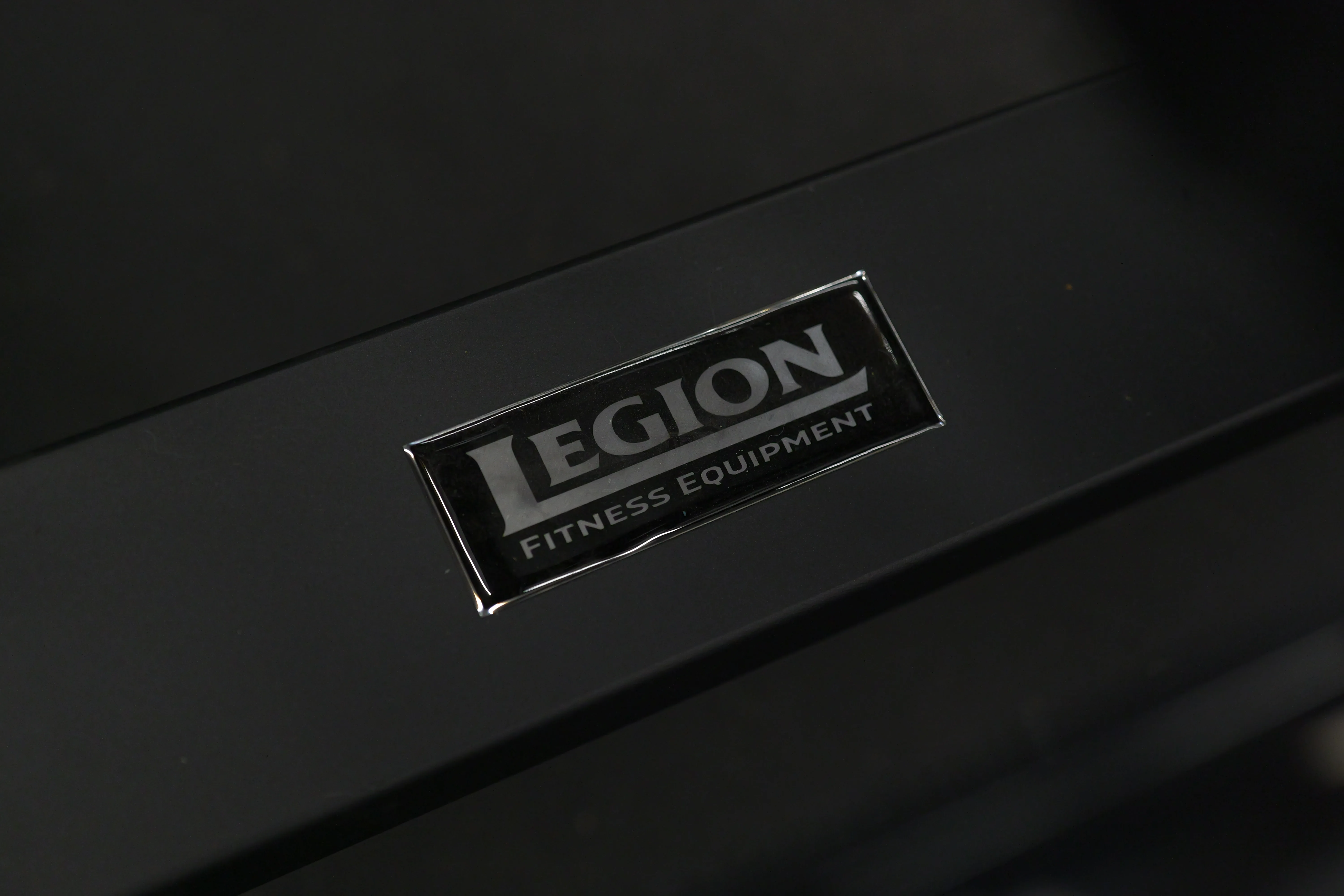

Legion grew the LPHS out of their Tough Stuff line, the commercial branch of the company. That background is visible the moment you put hands on the frame.

The steel is 11 gauge in 2 by 3 and 2 by 4 oval tube configurations. That’s what you’d find in a properly equipped commercial gym, not in a typical home gym machine at this price point. The welds are clean throughout. When the machine came out of the crate I went over every inch of the frame and the powder coat looking for shipping damage, dings, or imperfections. I found none. The finish was exactly what it should have been, as though the machine had just come off the line.

The foam pads are firm without being uncomfortable. On a leg press hack squat this matters more than people think, because you’re supporting your body against load in a way that a soft pad handles poorly. When you’re pressing serious weight in hack squat mode and your back is flat against the pad, a pad that gives too much costs you position. These hold. The shoulder pads are equally solid.

The machine weighs just over 350 pounds. When it’s in place and loaded, nothing moves. I ran over 600 pounds on the horns and pressed unilaterally (one leg, full range of motion) and the machine didn’t creak, shift, or do anything it wasn’t supposed to do.

One detail worth mentioning: Legion delayed sending my unit because they weren’t satisfied with the trolley rollers. I received what they called version three. Upgraded rollers arrived about a week into my testing and I swapped them in. The version three rollers felt fine to me. The upgrade didn’t feel meaningfully different in use. What the whole episode communicated is that this company notices things other companies don’t bother with.

Setup and Installation

The machine ships on a pallet and requires assembly. It took me about 90 minutes working alone.

The horizontal design actually makes this easier than it sounds. Because there’s no 45 degree frame, you’re not fighting angles while trying to hold a heavy component in position. Everything sits flat and stable as you build it. The instructions are clear. I didn’t have to stop and re-read anything twice.

If you’re planning to move this through a tight doorway or up stairs, work that out before assembly. At over 350 pounds on a pallet, your access path needs to be planned ahead of time. I used furniture dollies to reposition the machine after assembly, which worked well. Once it’s sitting on those rubber feet, it stays exactly where you put it.

Performance

The 1:1 cable ratio is the central fact about performance on this machine, and it’s the thing that will surprise you most in your first session.

A traditional 45 degree leg press mechanically reduces the effective load you’re pressing. The angle means you’re moving against roughly 70 percent of the weight on the horns. On this machine, there’s no angle. The cable runs parallel to the floor, the load pulls straight down, and the ratio is 1:1 all the way through the range of motion. Load 100 pounds, press 100 pounds. Load 400 pounds, press 400 pounds.

What this means in practice: if you regularly load 800 to 1,000 pounds on a standard leg press, 400 pounds on this machine is going to recalibrate you. That is not a flaw. That’s an honest number. It also means home gym owners who don’t have a mountain of plates can still have a demanding leg day. The machine’s 800 pound capacity (across two Olympic sleeve horns) covers the real working load of most lifters with room to spare.

The leg press movement removes something I’ve been managing around for years. When you press straight out and your torso stays upright, lower back involvement drops to essentially nothing. The lower back tends to round at the bottom of a standard leg press because of the way the angled position pulls the pelvis under. Here, there’s no angle and no posterior tilt at the bottom. After 90 days of regular sessions, my lower back has not been the limiting factor once. You press through your legs, and that’s the only system that gets tired.

The hack squat position stays unusual for longer than I expected. Three months in, I still had a beat every time I lay down and folded my knees up before pressing. The movement is mechanically the same as a standard hack squat. The muscles work the same. But pressing upward while lying flat is different in a way that takes consistent exposure to normalize. That’s not a complaint. It’s a real difference, and one worth knowing before you buy.

On unilateral work (single leg pressing), the belt driven cable system proves its value. I expected some binding or lateral friction when pressing from only one side of the footplate. There was none. With close to 300 pounds loaded and pressing with one leg, the movement was as smooth as bilateral work. The cable system keeps the load centered on the trolley regardless of where the force is applied. On a sled and rail design, pressing from one side creates lateral force against the rails, and above a certain weight that becomes friction you’re pressing against in addition to the weight itself. That doesn’t happen here.

On safety: there are no adjustable safety catches on this machine. The trolley travels to rubber mechanical stops at both ends of its range and physically cannot go beyond those limits. You cannot get pinned below your range of motion. But there is also no way to release the weight from a loaded position in an emergency without pressing it back to the start. The way I’ve managed this: I keep my working sets at a load where I always have at least three to four reps in reserve, meaning I’m never pressing to absolute failure on a heavy solo session. If your training style is based around grinding to true failure unassisted, you need to factor this in before buying. The mechanical stops are real safety. The absence of an emergency dump release is a real gap, and it’s the first thing I’d change on a future version.

Versatility

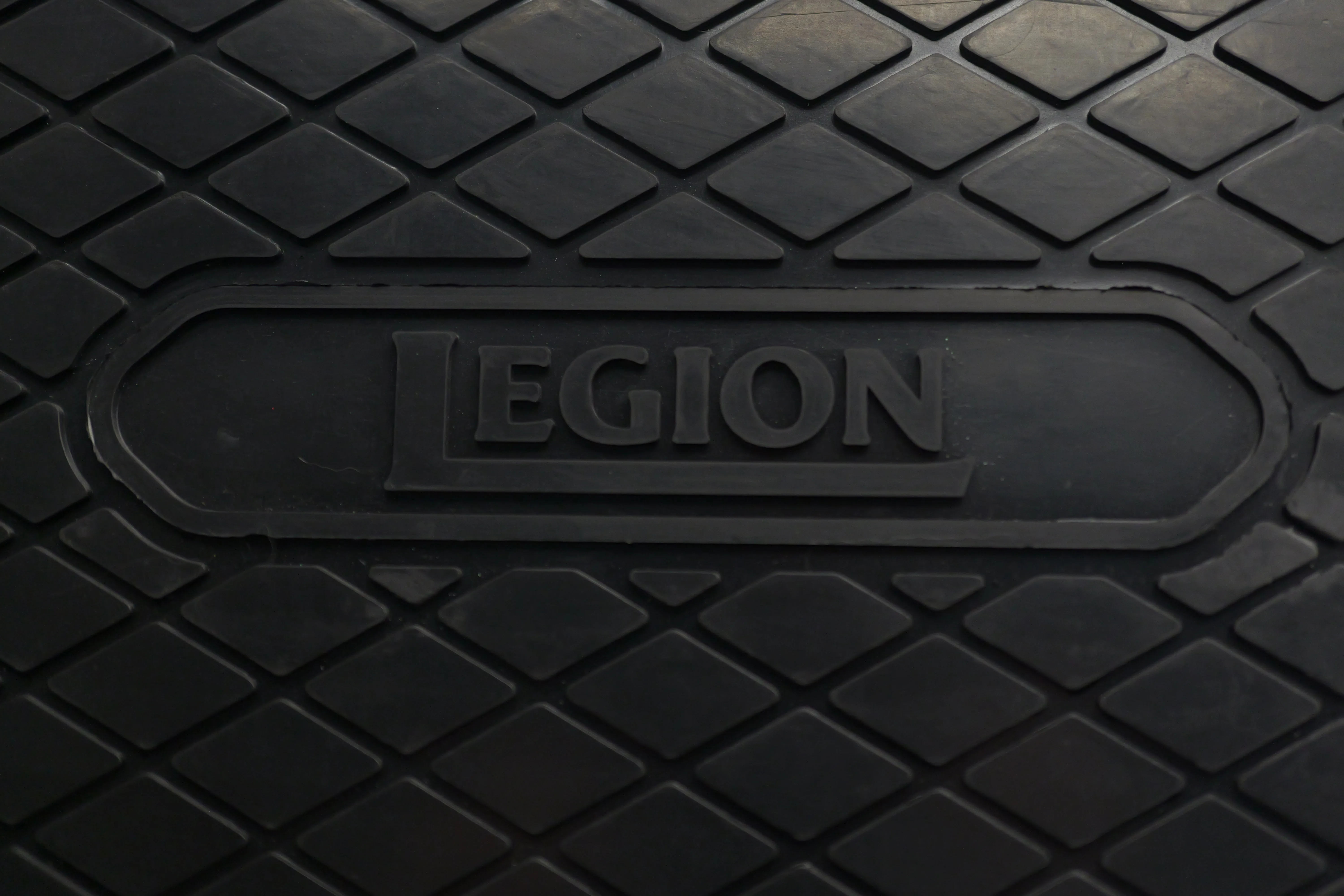

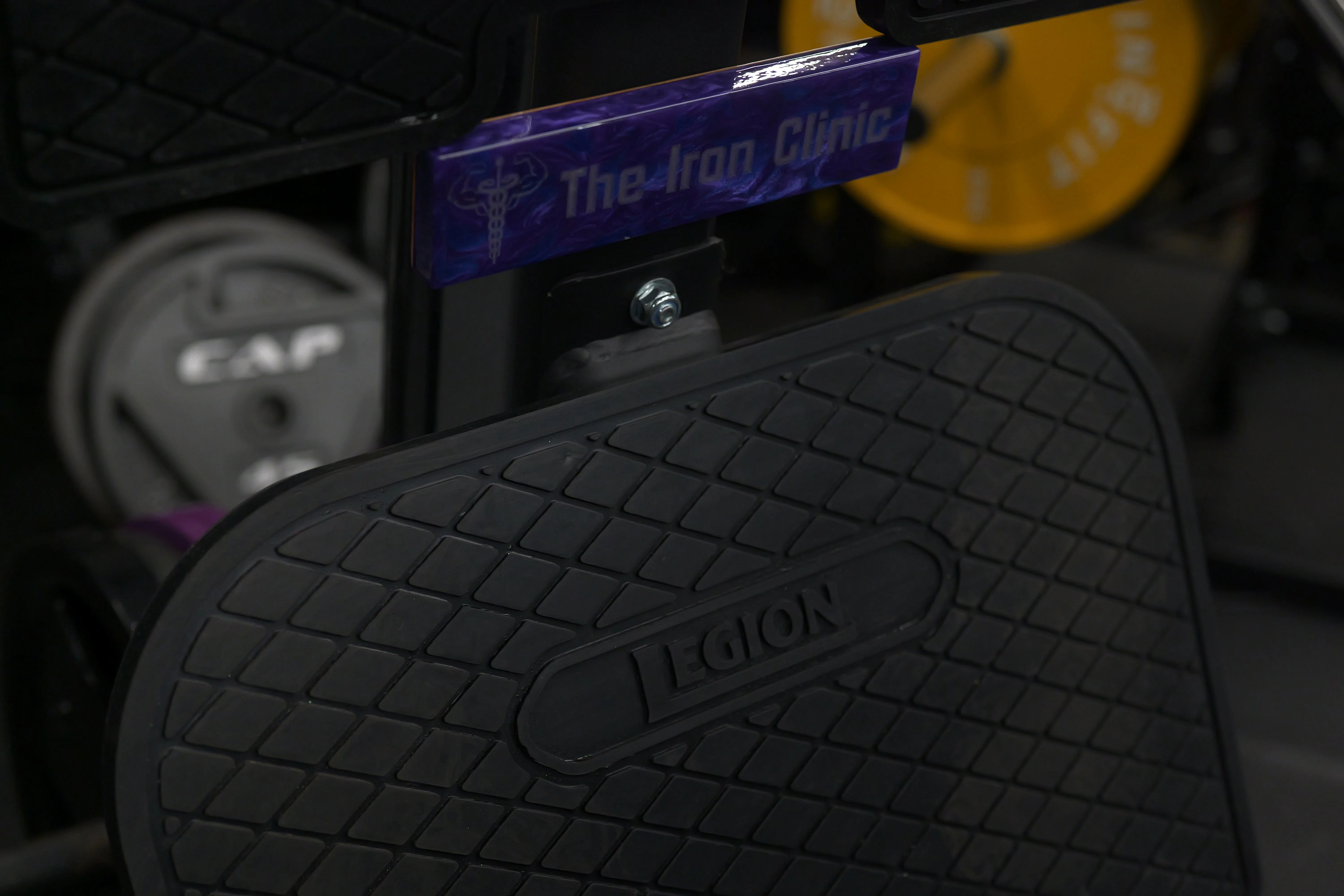

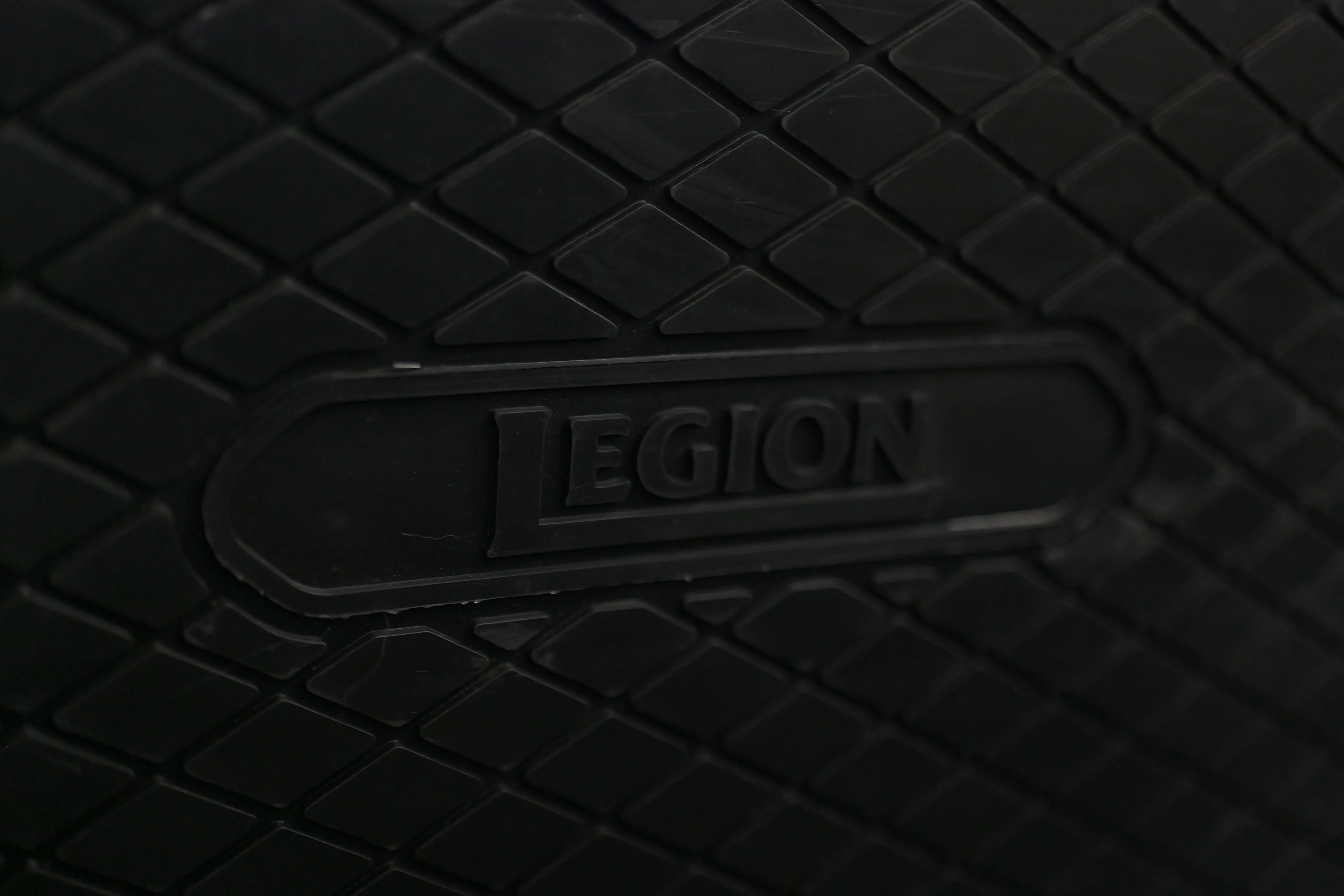

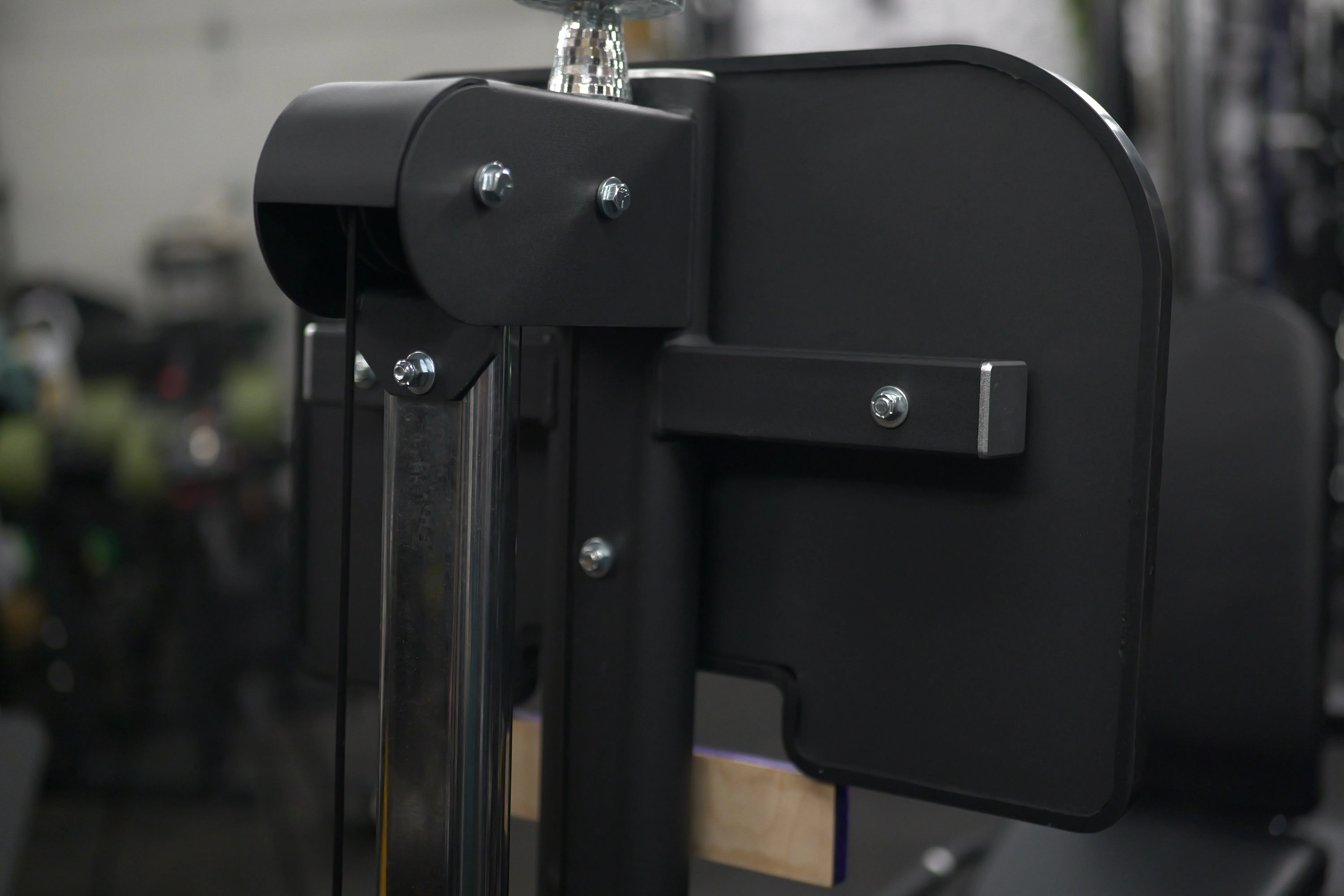

The machine has two foot plates at different heights. The lower plate is the default for leg pressing. The upper plate is the default for hack squats. Both can be used for either movement, and the results are different enough to be worth exploring.

Using the lower plate in hack squat mode puts your feet lower relative to your body and creates a natural knees over toes loading pattern. If you run a knees over toes protocol, this configuration makes it easy. Using the upper plate in leg press mode produces something closer to a Smith machine squat feel, feet forward and body upright, with strong quad recruitment. At my height (6’1”) I ran into some travel limitations with my feet on the upper plate in leg press mode, so taller lifters may find this variation harder to access.

The back pad has three angle positions for leg pressing. The lowest angle keeps your torso more reclined and takes some hip flexion out of the movement, which tends to feel more like a traditional leg press. The middle position is where I spend most of my time. The steepest angle brings your torso more upright and creates more hip flexion at the bottom of the rep, which increases the quad demand but also means you’ll feel it more in your hip flexors if those tend to give out first. Start in the middle position, press a few sets, and adjust from there. Most people settle into one angle and stay.

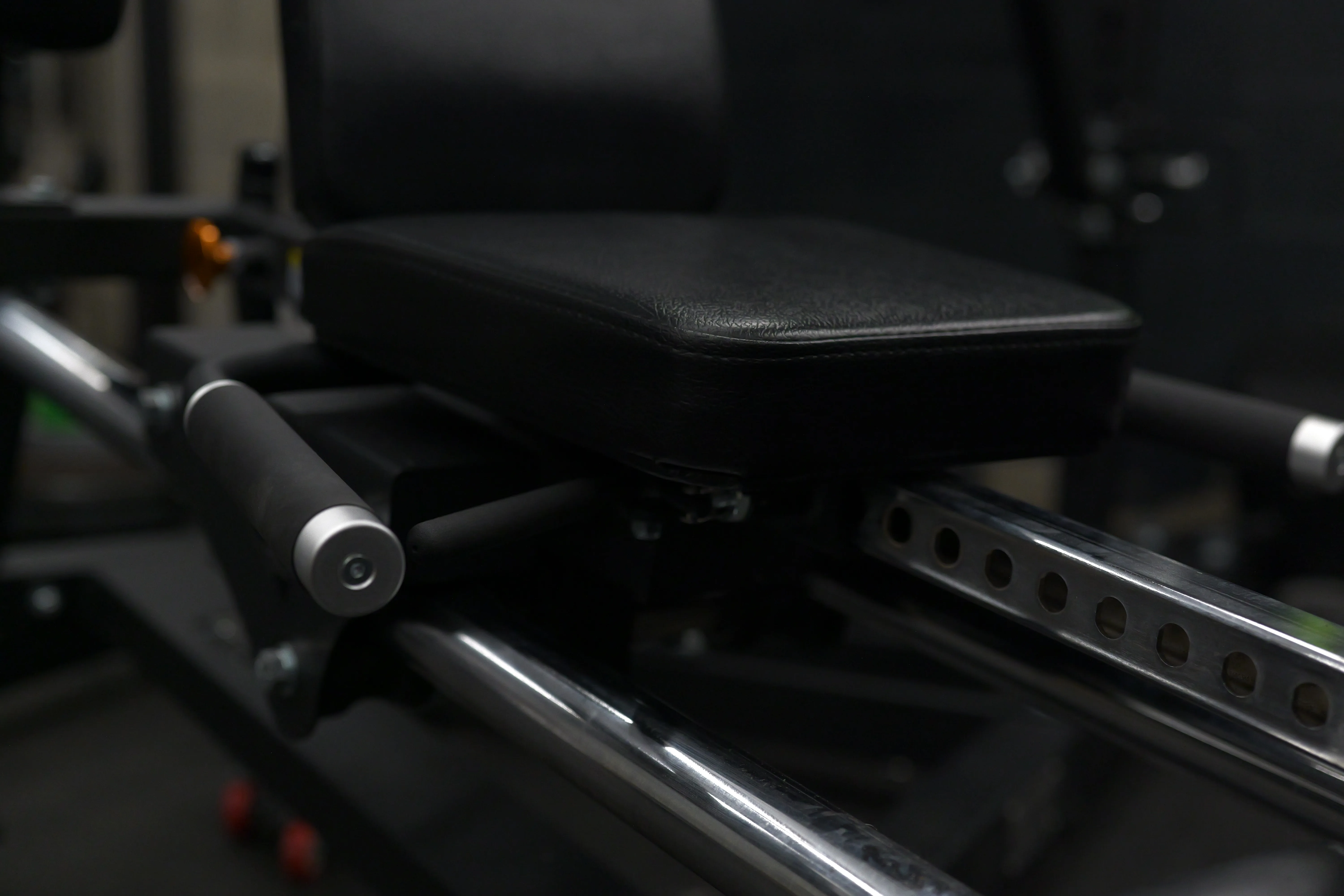

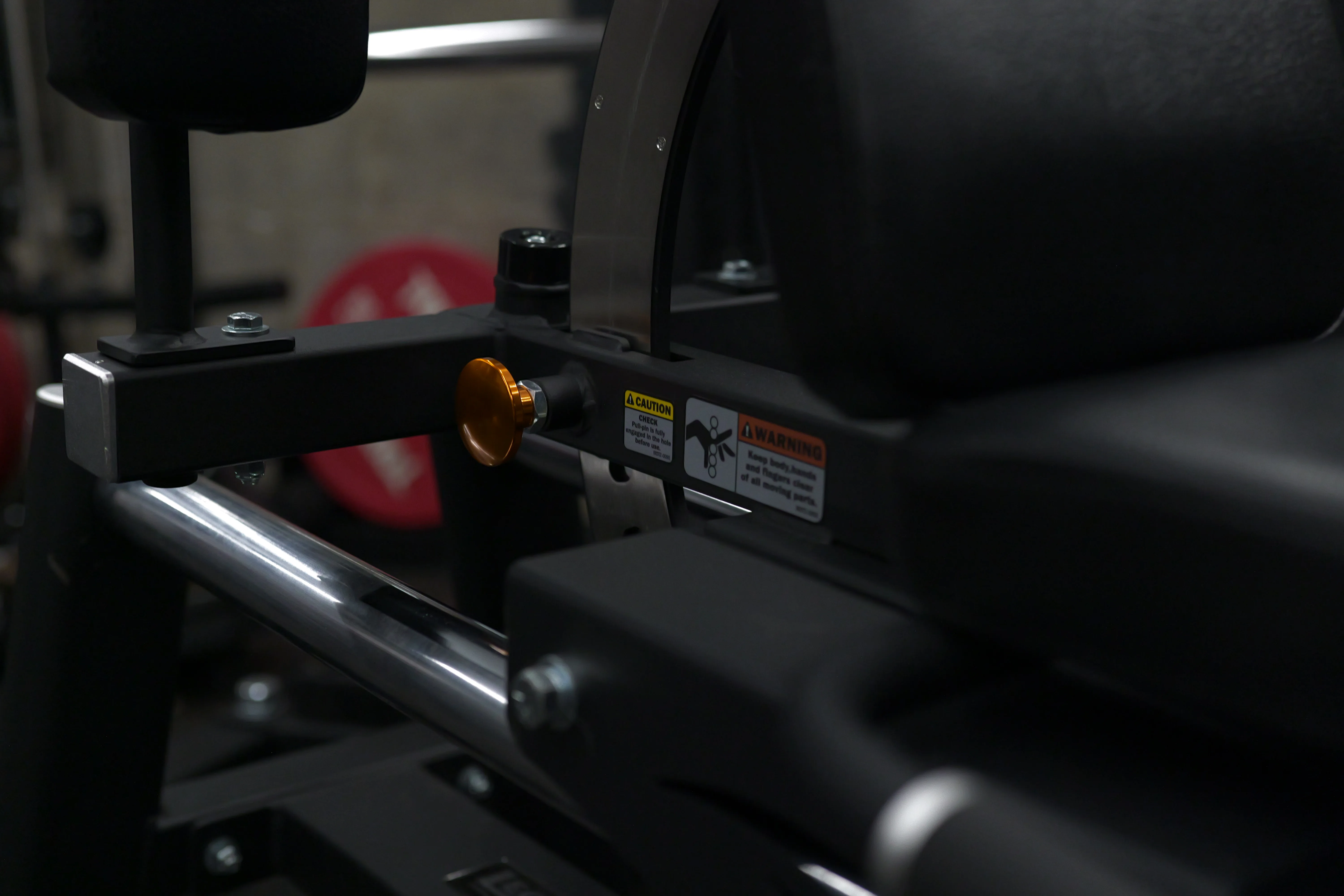

The trolley has 12 positions for seat distance. You’ll find your working position within the first couple of sessions and stay there. The pop pin adjustment is smooth and becomes automatic.

Calf raises are possible and I want to be straight about what that means. On the lower plate in leg press mode, they work about as well as calf raises on any standard leg press. On the upper plate in hack squat mode, you can drop your heels into the gap between the two plates and get ankle range of motion for a full-range calf raise. The gap is narrow. It worked for me. If you’re in a size 13 or larger, you may run into clearance issues getting full heel drop. This is not a movement Legion advertises prominently, and that’s the right call. You can do calf raises here. They’re adequate. A calf block accessory would make them good.

The switching mechanism is worth calling out again because it affects how the machine fits into an actual training session. On most combo machines, switching modes means moving a pad to a different attachment point, stashing a loose component somewhere, or at minimum retrieving a separate piece from across the gym. Here: pull the pop pin, fold the seat down, lie back. Pull the pop pin, fold the seat up, pick your angle. Nothing moves from one place to another. Nothing gets set down and forgotten. In a session where you’re supersetting leg press and hack squat back to back, this matters.

Value

The machine lists at $3,000. It’s regularly on sale at $2,199, and the code IRON CLINIC takes another $250 off at checkout, bringing the effective price to around $1,949. The frame carries a lifetime structural warranty and shipping is free curbside to the continental U.S. That warranty covers the structural frame, not wear items like pads and cables, which is standard for this category.

The natural comparison points are the Titan leg press hack squat at $1,899, the Bells of Steel standard combo at around $1,900, and the Force USA Ultimate at $2,499. All of those run at 45 degrees. All of them have nominal weight capacities of 1,000 pounds or more, which looks better than Legion’s 800 pounds until you account for the 1:1 ratio. The effective challenge per pound loaded on this machine is meaningfully higher than on any angled machine.

The build quality is the clearest differentiator from the Titan and Bells of Steel standard machines. The steel gauge, the welds, the pad quality, and the finish are visibly different. The Force USA Ultimate is closer in build tier but runs around 48 inches wide versus 36.25 inches here. For anyone who has already ruled out the Force USA on footprint grounds, that comparison is settled.

If your priority is the highest nominal weight capacity for the lowest price in a traditional 45 degree design, the Titan at $1,899 is the honest recommendation. If commercial build quality and a footprint that fits where standard machines don’t are what you’re after, the value case for this machine is strong.

Who Is This For?

The most direct version: home gym owners who have priced out the leg press hack squat category, measured their space, and walked away because nothing fit.

This machine is 36.25 inches wide. If width has been the obstacle, this is the solution.

Beyond the space argument, this machine is for anyone who wants to know what they’re actually pressing. The 1:1 ratio removes the mechanical advantage that makes traditional leg press numbers feel larger than they are. If your training is honest and your loads are real, this machine matches that.

Height is not a small consideration and I won’t soft-pedal it. At 6’1”, I reach approximately parallel at full depth on both movements, which is where I want to be. When I pushed for more depth, I contacted the mechanical stop. There’s no additional travel. Legion doesn’t publish an official height recommendation, but based on 90 days of use, I’d call 6’1” approximately the comfortable ceiling. If you’re meaningfully over that, you may find the machine’s travel range limits your depth before you’re satisfied with the range of motion. My honest recommendation for anyone over 6’2”: contact Legion directly before buying. They’re aware of this, taking it seriously, and the answer they give you about what’s coming may change your timing.

This is not the machine for people who are significantly over 6’1”, who need robust calf training capability, or who require adjustable safety catches for grinding to failure alone on heavy sets.

Final Verdict

I went into this skeptical. The horizontal design looked like it might be a novelty, a machine built around being different rather than being better.

It’s not that. Ninety days on this machine pushed my legs harder than any leg press I’ve owned. The 1:1 ratio removes the mechanical softening that lets you load a number that looks impressive but doesn’t challenge you proportionally. The build is commercial in every way that matters. The switching mechanism is effortless. The footprint fits spaces that a standard machine fills completely.

My one real complaint is the travel range. At 6’1”, I’m at the edge of what the machine accommodates comfortably. Extend the trolley travel by six to twelve inches and this thing earns a perfect score. As it stands, it earns a strong one.
